Chamfer Module

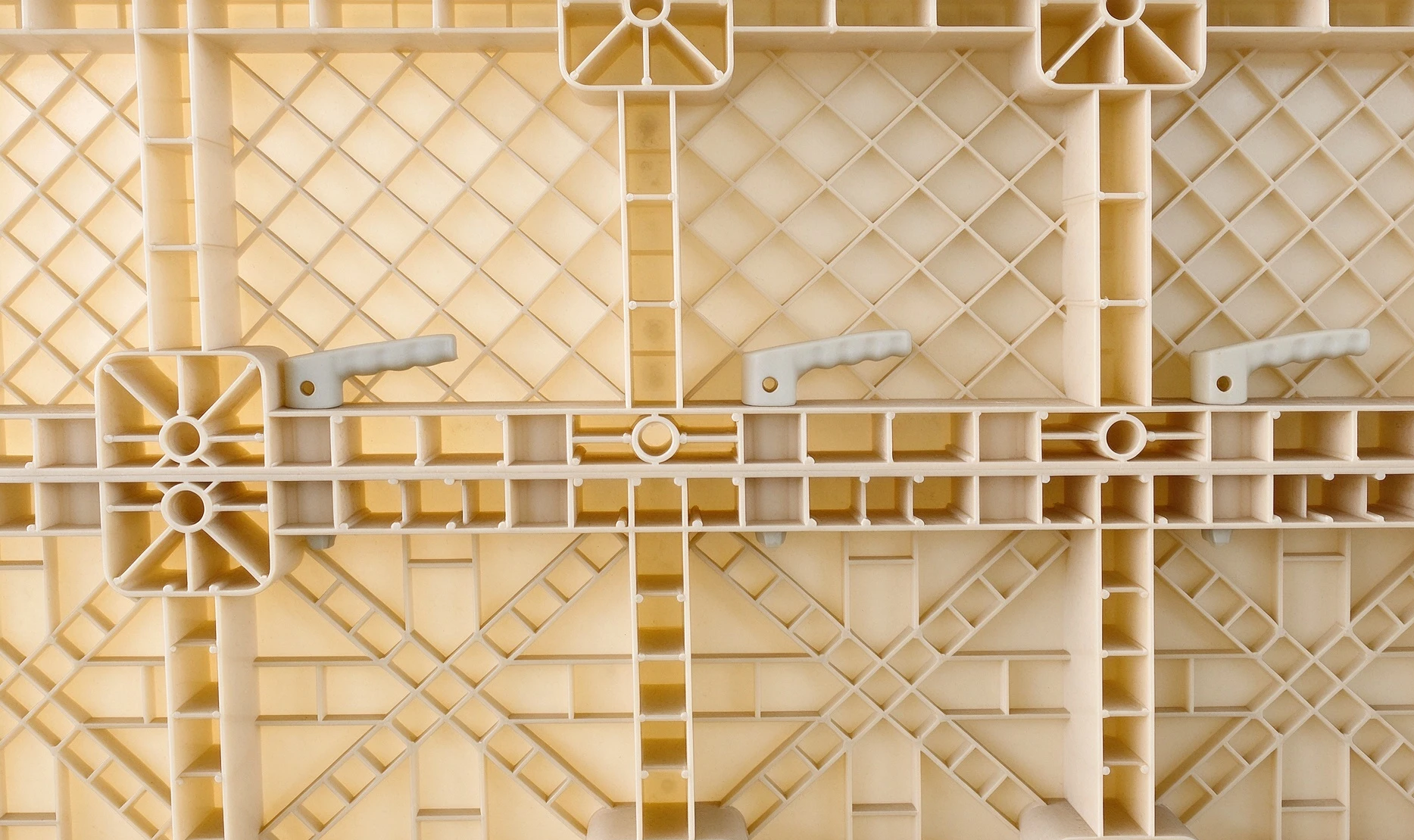

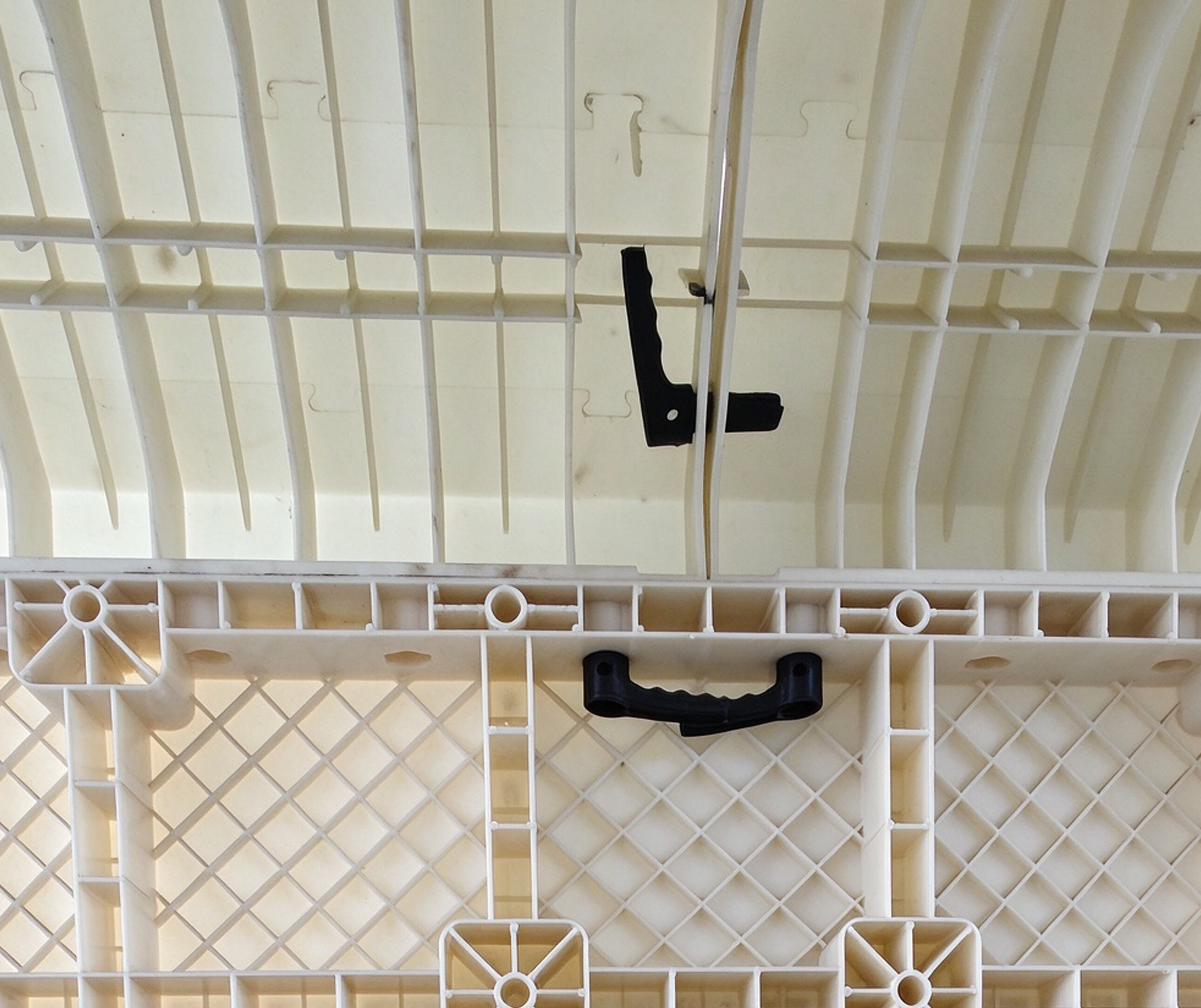

Chamfer module for culvert structure application. Integrally formed plastic steel with reinforced ribs, compatible with culvert formwork system. Modular assembly with quick-lock design, forms standard chamfer in one pour, high efficiency and reusable.
Key Specifications
Dimensions15*15*7mm,20*20*7mm,25*25*7mm,30*30*7mm,75*25*8mm60*20*8mm,45*15*8mm,90*30*8mm,120*40*8mm,150*50*8mm,1800*60*8mm
MaterialPP+Steel Powder
Weight16-20 kg/m²
Charpy Impact Strength46 kJ/m²
Flexural Strength34.1MPa
Shore HardnessD/15:62
Vicat Softening Temperature90.6 ℃
Water Absorption0.02%
Key Features
Adjustable width and height
Modular connection system
High load capacity
Easy stripping
450+ reuse cycles
Application Scenarios
Floor beams
Bridge girders
Transfer beams
Lintel beams
